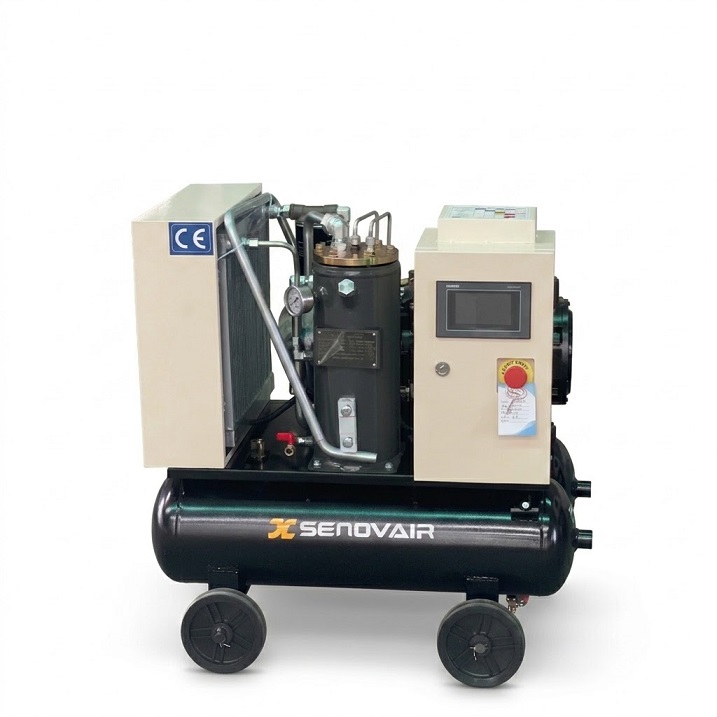

SMALL 2-IN-1 SCREW AIR COMPRESSOR TECHNICAL PARAMETERS
Air-end
The reliability and stability of an air compressor are greatly dependent on the air-end, which can be considered the heart of the air compressor. Choosing a high-quality and reliable air-end is a responsibility to our customers and to ourselves. Our air compressors primarily use air-ends from Baosi, a professional air-end manufacturer with annual sales of approximately $500 million. We can guarantee the quality of the air-ends, and even if problems arise, we will provide a solution within 24 hours.
Inverter
The inverter is the brain of the air compressor, and all operations of the air compressor are processed and regulated through the inverter, ensuring the safe and reliable operation of the air compressor system in all aspects. We typically use inverters from Megmeet, Inovance, and Zoncn, which are internationally renowned brands with stable and reliable quality and guaranteed after-sales service, providing customers with the best possible air compressor user experience.
Motor
The electric motor, as the power source of the air compressor, is extremely important and cannot be easily damaged, so we were very careful in our selection. After comparing several brands, we finally chose Jinlong and Jiangtian, both with IP55 protection ratings and truly possessing first-class energy efficiency. We believe many of you have heard of these two brands and highly appreciate their quality and stability. Therefore, your choice is also our choice, with quality as the primary criterion for evaluation.
|
SMALL 2-IN-1 SCREW AIR COMPRESSOR TECHNICAL PARAMETERS |
|||
| Model | SAND-10HP | SAND-20HP | SAND-30HP |
| Power(KW) | 7.5 | 15 | 22 |
| Horsepower(HP) | 10 | 20 | 30 |
| Air Displacement/Pressure (m³/min/MPa) | 1.1/0.8 | 2.3/0.8 | 3.6/0.8 |
| 0.95/1.0 | 1.8/1.0 | 3.0/1.0 | |
| 0.8/1.2 | 1.6/1.2 | 1.6/1.2 | |
| Air Outlet Size | DN20 | DN25 | DN25 |
| Tank Volume(L) | 80 | 110 | 110 |
| Driven Method | Direct Driven | ||
| Type | PM VSD | ||
| Start Method | Variable Frequency Start | ||
| Length (mm) | 830 | 1060 | 1060 |
| Width (mm) | 580 | 730 | 760 |
| Height (mm) | 840 | 1100 | 1150 |
| Weight (kg) | 130 | 215 | 245 |
Q: How to choose air compressor?
A: When selecting an air compressor, it’s important to consider the specific needs of your site. Factors to consider include the required flow rate, desired pressure, whether an oil-based or oil-free machine is preferred, and the dew point temperature of the compressed air. By taking these factors into account, you can choose an air compressor that meets your specific needs and ensures optimal performance.
Q: Which payment terms you can accept?
A: We can accept flexible payment include Bank Transfer, LC, DP, or Combination terms as negotiation.
Q: Which shipping way can you provide?
A: We can provide shipping by sea, by air , by express and etc according to customer requirements.
Q: Can you do OEM and ODM?
A: Yes, OEM and ODM are both available for us. With the requirements customization of the material, colors, style, the basic quantities will be advised after we discussed together.
Q: How to place order?
A: When you are ready to order, please contact us for confirm the suitable solution & plan & model. What cannot be ignored is you should provide a copy purchase order to ensure that your order is processed properly.
Q: What is the MOQ?
A: The MOQ, or minimum order quantity, for sample orders is just 1 set. However, for compressors ranging from 7.5-37kw, the minimum quantity is 3-5 sets. For compressors over 55KW, the MOQ is 1-2 sets. It’s important to note that the MOQ can be adjusted based on your specific situation, so be sure to discuss your needs with our team.
Q: How long will you take to arrange production?
A: As an experienced air compressor manufacturer, our standard production time is typically between 20-25 days.
Q: How about your after-sales service?
A: 1. Provide customers with installation and commissioning online instructions.
2. Prepare and Well-trained engineers available to overseas service within one year.
3. Worldwide agents and after service available.
Senovair boasts a 15,000 ㎡ production base equipped with a specialized testing validation workshop, ensuring stable performance and energy efficiency of every air compressor before delivery.We have also built a full-process production line for air tanks, allowing us to provide a more complete and integrated product portfolio. We are committed to supplying customers with highly competitive products and tailored compressed air system solutions.
Senovair employs a professional technical team that leads industry innovation.Backed by a complete pre-sales and after-sales service team offering product consultation and reliable technical support,we are dedicated to bringing high-quality air compressors to the global market and advancing green, sustainable development across the industry.
