Refrigerated Air Dryer Systems: Working Principles, Benefits, and Future Trends
2026-07-30
A refrigerated compressed air dryer is an essential component in modern compressed air systems, using refrigeration technology to effectively remove moisture from compressed air and improve air quality. As a highly efficient compressed air drying solution, it is widely used across various industries, including pneumatic applications, electronics manufacturing, food processing, pharmaceuticals, and other sectors where clean and stable compressed air is required. Its working principle is based on a thermodynamic refrigeration cycle, which cools compressed air to condense and separate water vapor, ensuring a reliable and dry air supply for downstream equipment.
With the increasing demand for efficient and reliable compressed air solutions, refrigerated compressed air dryers have become a critical part of industrial air systems. By reducing moisture content and preventing issues such as corrosion, equipment damage, and product quality problems, these dryers help improve system performance and extend the service life of pneumatic equipment. This article provides an overview of the refrigeration system working principle of refrigerated air dryers through a detailed diagram, while also exploring their key applications and future development trends in modern industries.
Ⅰ. Four Key Processes

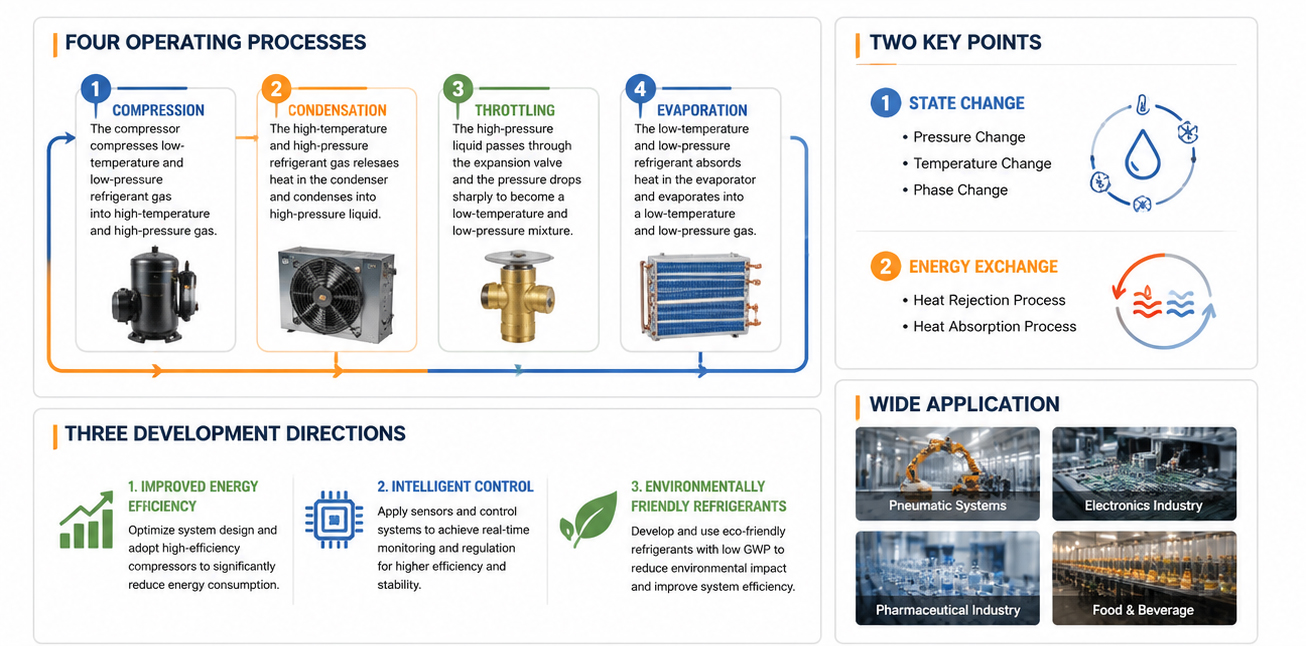

The refrigeration system of a refrigerated dryer operates primarily through four key processes: compression, condensation, throttling, and evaporation.
1. Compression Process:
The compressor serves as the heart of the refrigeration system, responsible for compressing low-temperature, low-pressure refrigerant gas into high-temperature, high-pressure gas. This process consumes energy to raise the refrigerant's pressure and temperature.
2. Condensation Process:
High-temperature, high-pressure refrigerant gas enters the condenser. Here, the refrigerant exchanges heat with ambient air or water, releasing heat as it cools and condenses into a high-pressure liquid. This is the critical heat-rejection stage of the refrigeration system.
3. Throttling Process:
As the high-pressure liquid passes through an expansion valve (or throttling valve), the pressure drops sharply, transforming the fluid into a mixture of low-temperature, low-pressure liquid and gas. This process effectively lowers the refrigerant's temperature, preparing it for the heat-absorption stage in the evaporator.
4. Evaporation Process:
Low-temperature, low-pressure refrigerant enters the evaporator, where it absorbs heat from the surrounding air and evaporates into a low-temperature, low-pressure gas. This process lowers the temperature of the compressed air within the heat exchanger, thereby achieving the cooling effect.
II. Two Key Aspects
1. State Changes:
- Pressure changes
- Temperature changes
- Phase changes
2. Energy Exchange:
- Heat release process
- Heat absorption process
III. Three Major Directions for Future Development
1. Energy Efficiency Improvement
As the energy crisis intensifies, improving the energy efficiency of refrigerated dryers has become a research priority. Energy consumption can be significantly reduced by optimizing the refrigeration system design and utilizing high-efficiency compressors.
2. Intelligent Control
The application of intelligent control technology can enhance the operational efficiency and stability of refrigerated air dryers. Sensors and control systems enable real-time monitoring and adjustment of the refrigeration process.
3. Environmentally Friendly Refrigerants
With growing environmental awareness, the research and application of eco-friendly refrigerants represent the future direction of development. These new refrigerants not only have a lower greenhouse effect but also improve the efficiency of refrigeration systems.
